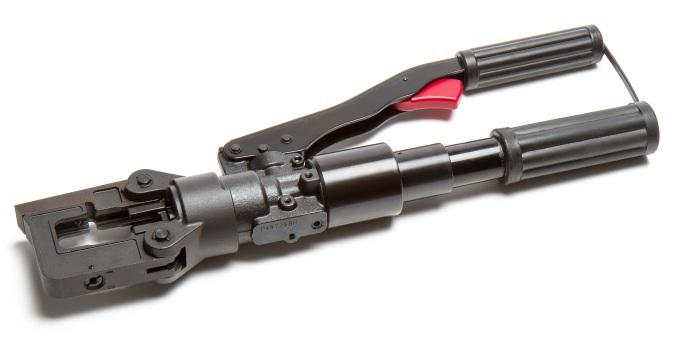

A handheld hydraulic crimpingtool, forusewith copper tube
terminals from 10mm2 up to 240mm2.
The two stage hydraulic system ensures rapid advance on low
pressure, minimising the number of pump cycles needed to
achieve maximum compression.
The kit contains seven interchangeable hexagon die sets:
10/16mm2, 25/35mm2, 50/70mm2, 95/120mm2, 150mm2,
185mm2 and 120mm2.
The crimp head can rotate 180o for ease of use.

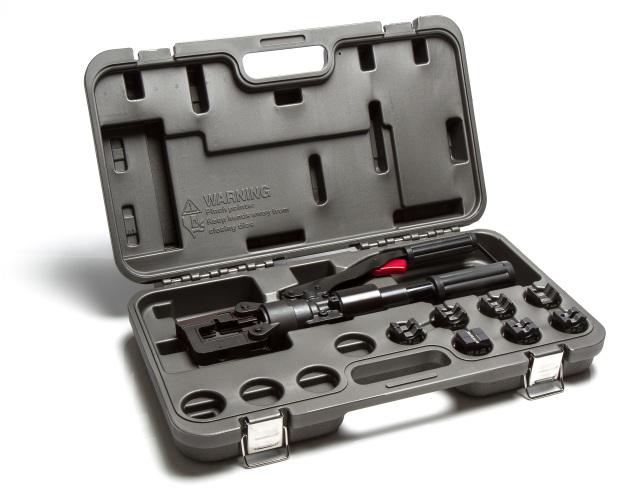

Supplied in an impact resistant plastic carrying case.
Meets the compression ratio requirements of BSEN 61238-1:2003.
Specification.
Maxpressure: 550bar
Oilcapacity: 56CC
Maxoutput: 5.2Tonnes
Length: 375mm
Weight: 2.8kgs:
