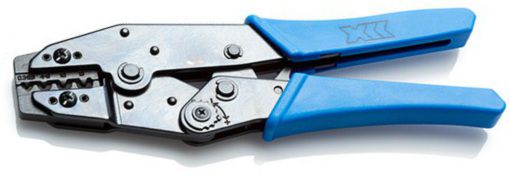

A handheldfour jawcrimpingtool, withratchet mechanism
for complete controlledcrimpcycle,forusewith standard
copper tube terminalsfrom 1.5mm up to 16mm2.
Meets the compression ratio requirements of BSEN 60352-2:2006,
BSEN61238-1:2003 and BS 5G178:1992.
The high precision jaws can be replaced when worn to extend
the life of the tool.
Specification.
Jaw set: Carbon steel SCM440
Frame: Steel S45C
Handles: Polypropylene
Length: 225mm
Weight: 0.55kg
